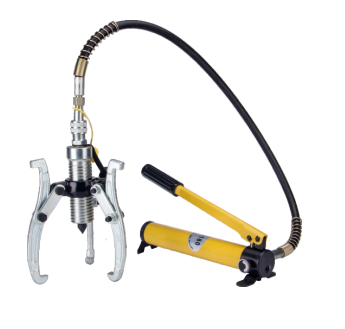

LM121103 Hydraulic Puller

Model: YLF-5
Axis stroke: 200mm
Output: 5T
Max.Lateral distance: 50mm
Max.Longitudinal distance: 140mm
Weight: 6.0Kg
Claw number: 2-3
Model: YLF-10
Axis stroke: 250mm
Output: 10T
Max.Lateral distance: 50mm
Max.Longitudinal distance: 160mm
Weight: 9.5Kg
Claw number: 2-3
Model: YLF-20
Axis stroke: 350mm
Output: 20T
Max.Lateral distance: 50mm
Max.Longitudinal distance: 200mm
Weight: 14.5Kg
Claw number: 2-3
Model: YLF-30
Axis stroke: 400mm
Output: 30T
Max.Lateral distance: 50mm
Max.Longitudinal distance: 250mm
Weight: 22Kg
Claw number: 2-3
Model: YLF-50
Axis stroke: 500mm
Output: 50T
Max.Lateral distance: 60mm
Max.Longitudinal distance: 400mm
Weight: 34Kg
Claw number: 2-3
Model: YLF-100
Axis stroke: 600mm
Output: 100T
Max.Lateral distance: 60mm
Max.Longitudinal distance: 300mm
Weight: 50Kg
Claw number: 2-3
