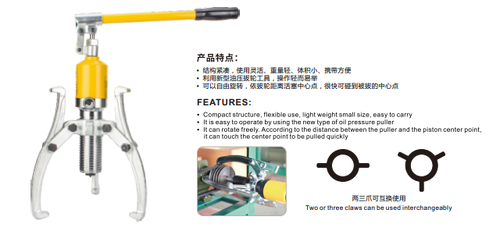

LM121102 Hydraulic Puller

Model: YL-5
Axis stroke: 200mm
Output: 5T
Max. Lateral distance: 50mm
Max. Longitudinal distance: 140mm
Diameter of thread: 45mm
Weight: 5.8Kg
Model: YL-10
Axis stroke: 250mm
Output: 10T
Max. Lateral distance: 50mm
Max. Longitudinal distance: 160mm
Diameter of thread: 60mm
Weight: 9.0Kg
Model: YL-20
Axis stroke: 350mm
Output: 20T
Max. Lateral distance: 50mm
Max. Longitudinal distance: 200mm
Diameter of thread: 73mm
Weight: 15Kg
Model: YL-30
Axis stroke: 400mm
Output: 30T
Max. Lateral distance: 50mm
Max. Longitudinal distance: 250mm
Diameter of thread: 88mm
Weight: 23Kg
Model: YL-50
Axis stroke: 500mm
Output: 50T
Max. Lateral distance: 60mm
Max. Longitudinal distance: 400mm
Diameter of thread: 110mm
Weight: 36Kg
