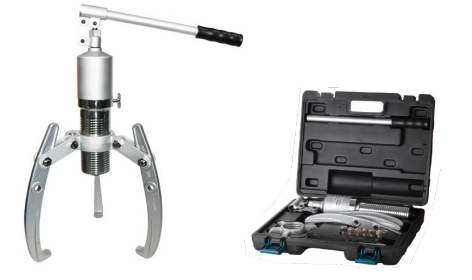

LM121101 Hydraulic Puller

Model: YLX-5
Axis stroke: 200mm
Output: 5T
Max. Lateral distance: 140mm
Max. Longitudinal distance: 50mm
Diameter of thread: 45mm
Weight: 5.8kg
Model: YLX-10
Axis stroke: 250mm
Output: 10T
Max. Lateral distance: 160mm
Max. Longitudinal distance: 50mm
Diameter of thread: 60mm
Weight: 9.0kg
Model: YLX-20
Axis stroke: 350mm
Output: 20T
Max. Lateral distance: 200mm
Max. Longitudinal distance: 50mm
Diameter of thread: 73mm
Weight: 15kg
Model: YLX-30
Axis stroke: 400mm
Output: 30T
Max. Lateral distance: 250mm
Max. Longitudinal distance: 50mm
Diameter of thread: 88mm
Weight: 23kg
Model: YLX-50
Axis stroke: 500mm
Output: 50T
Max. Lateral distance: 400mm
Max. Longitudinal distance: 60mm
Diameter of thread: 110mm
Weight: 36kg
