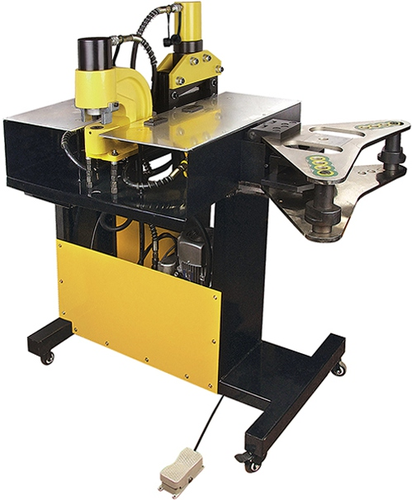

LM121171 Multi-Function busbar processor(4 in 1)

Functions: Cutting, Punching, Flat bending and busbar Bending Voltage: Single phase 50 Hz, 220 V
Oil pressure: 700 kgf/cm²
Outlet of cutting machine: 15 ton
Bus bar cutting capability: 150 mm × 12 mm
Punching machine output: 35 ton
Depth of throat: 110 mm
Punching capacity: Φ6–Φ20.5 (Max. thickness): 12 mm
Standard setting: Φ7, Φ9, Φ10.5, Φ13.8, Φ17.5, Φ20.5 mm
Bend row machine output: 25 ton
Bending capacity: 150 × 12 mm
Weight: 220 kg
Size: 850 × 750 × 1100 mm
