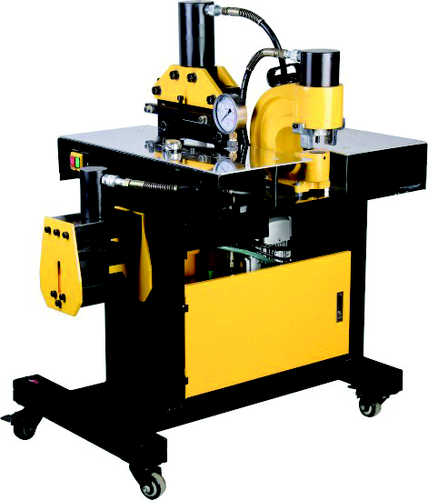

LM121170 Multi-Function busbar processor(3 in 1)

Functions: Cutting, Punching, Flat Bending
Voltage: Single phase 50 Hz, 220 V
Oil pressure: 700 kgf/cm²
Outlet of cutting machine: 35 ton
Bus bar cutting capability: 200 mm × 12 mm
Punching machine output: 35 ton
Depth of throat: 110 mm
Punching capacity: Φ6–Φ20.5 (Max. thickness): 12 mm
Standard setting: Φ7, Φ9, Φ10.5, Φ13.8, Φ17.5, Φ20.5 mm
Bend row machine output: 15 ton
Bending capacity: 200 × 12 mm
Weight: 230 kg
Size: 1050 × 750 × 1300 mm
